RECENTLY COMPLETED PROJECTS
Ivy Station
Sierra Commercial Plumbing was selected by Bernards Brothers to be a part of the Ivy Station project. Sierra provided 18 months of construction services for the project consisting of an underground parking structure that supports three structures on the podium level. Sierra installed all of the parking structure plumbing as well as the support piping for the hotel and residential buildings on the podium deck and the office tower.
Music Center Plaza
Extensive remodel project included support piping for the new kiosk buildings, restrooms and kitchen services. Addition of new storm drain systems, grease waste, sewer, vent, gas and domestic hot and cold water.
PETERSON AUTOMOTIVE MUSEUM, LOS ANGELES
Sierra was selected and was proud to provide design build services for the Petersen Automotive Museum in Los Angeles. The project was a three phase project. Phase one located the staff in the basement for a remodel. Phase two was a face lift on the exterior and phase three remodeled the interior of the four story building. The design was for a new grease waste system, storm drain systems, waste and vent, Hi Low domestic water and domestic hot water systems. The project was fast track with an opening date that didn’t change. The project is located in LA's Miracle Mile museum row next to LACMA and The La Bra tar pits.

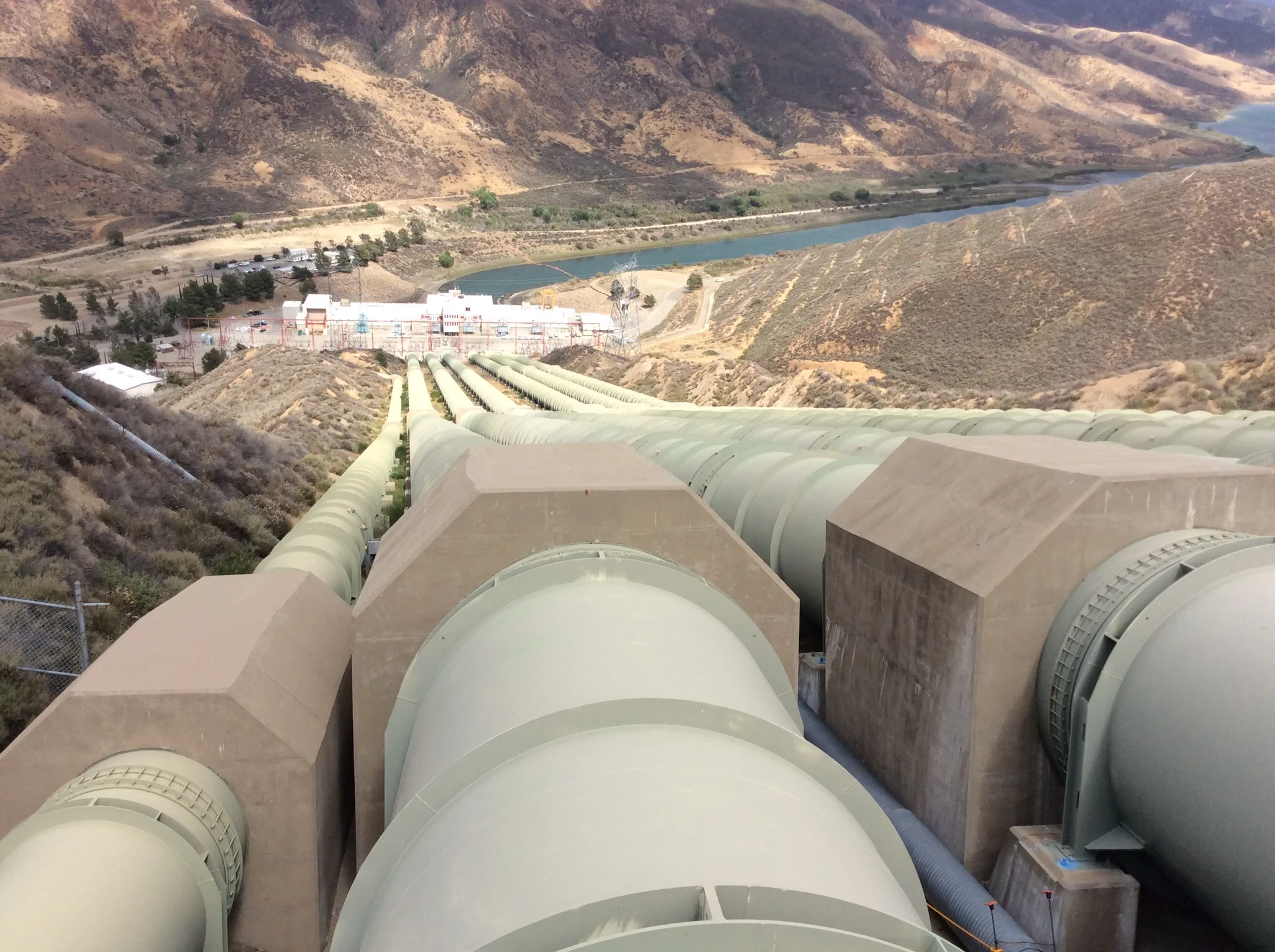

alstom Castaic
Sierra Commercial Plumbing, Inc. was selected by Alstom to design and build the cooling water system for the LADWP Castaic Hydro rehabilitation unit 7 located in Castaic, approximately 35 miles north of Los Angeles. Sierra employed over 30 workers, detailers, fitters and welders. Sierra also sub contracted pipe cleaning, pipe lining, sand blasting and radiographic testing. The generator is a hooped pelton runner patented by Alstom. The cooling system cools the generator and the three main shaft bearings. The system starts at 900 PSI and steps down for the cooling system. Sierra also installed specialty hydraulic systems designed by Alstom. One of the systems was the braking jets built in Canada and shipped to the site. Sierra rigged the system and installed it 40’ above grade in the turbine shaft. Sierra installed the hydraulic oiling system and compressed air piping for controls.
EL ENCANTO, SANTA BARBARA
Nestled in the hills of Santa Barbara, we are proud to have been the commercial plumbing contractor for the $60 million dollar renovation of the historic El Encanto Hotel and Villas. Sierra Commercial Plumbing, Inc., completed the plumbing in June of 2013. The renovation of this five star Orient Express Property consisted of an extensive remodel of existing villas and construction of new buildings. In total, Sierra worked on thirty-four guest buildings. Being the luxury boutique hotel that El Encanto is, no two rooms were built the same and we installed a large variety of high end plumbing fixtures in each building. The project was built on a sloping site and every building was built to its own unique elevation. Seven buildings were constructed on top of concrete parking structures. One of the parking structures incorporated a utility space between the guest buildings and structure. The domestic water system is a complex recirculation system with heat trace. Over twenty one miles of small bore piping was installed in the guest rooms.
We had the privilege of working with Bernards and over 25 other subcontractors on bringing this project to a successful conclusion.
SANTA MONICA UCLA MEDICAL
We are proud to have been the commercial plumbing contractor for this outpatient services building on 16th Street, Santa Monica. As the design assist contractor for the medical systems, Sierra fully outfitted several operating rooms, recover rooms, and test labs with medical air, vacuum, oxygen, and nitrous oxide. This building has its own plant for the medical gases. The project included a fuel oil system that fed a roof top generator.
Sierra also was the design build contractor of the steam system. Piping was installed from St. John’s Hospital, which was the source of the steam, under 16th Street that fed into project. The system fed equipment throughout the building with four different pressures, including heating hot water heat exchangers, domestic hot water, sterilizers for operating rooms, and large scale cart sterilizers. Steam condensate was then returned by pumps to the hospital.
The project was also challenging due to the inclusion of one of the first automated parking systems in LA under the first floor, which required that the piping be run around the parking elevators.
We had the privilege of working with Nautilus Group, Inc., on this project which was recently honored the AIA National Healthcare Design Award.

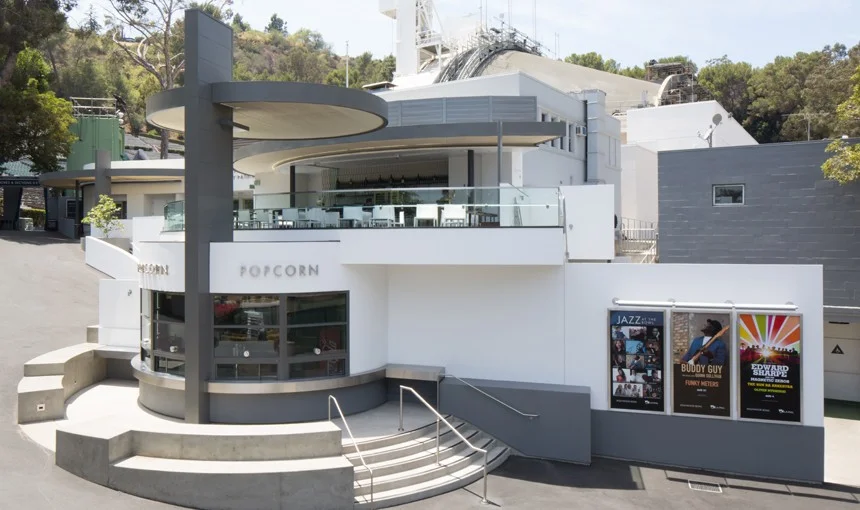

hollywood bowl popcorn stand, los angeles

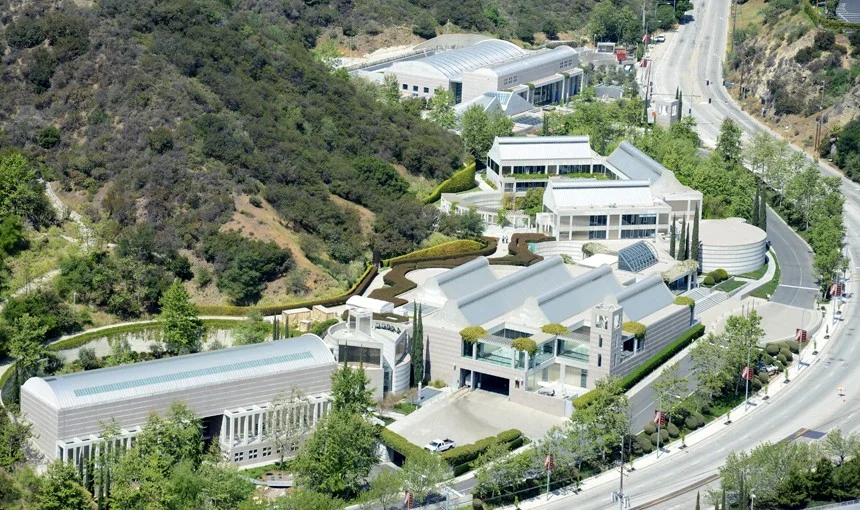

SKIRBALL GUERIN PAVILLION, los angeles
Designed by the Skirball’s celebrated architect, Moshe Safdie, the new building features a 9,000 square-foot ballroom capped with majestic arches and affording sweeping views of a cascading tiered garden.

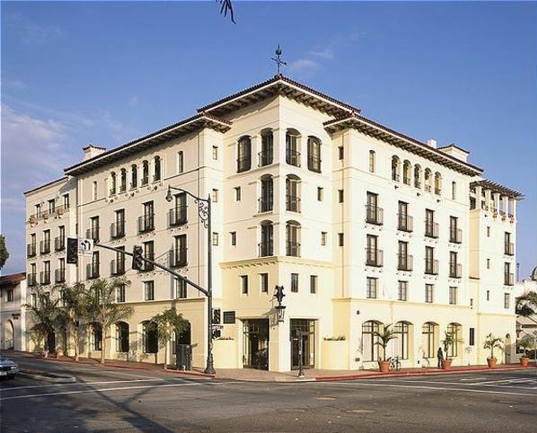

THE CANARY HOTEL, SANTA BARBARA

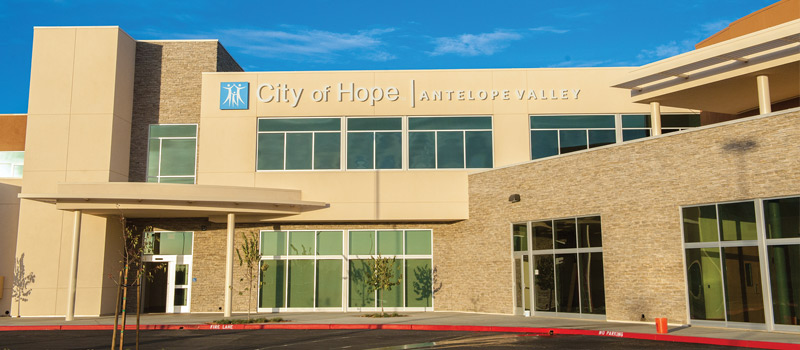

CITY OF HOPE, ANTELOPE VALLEY

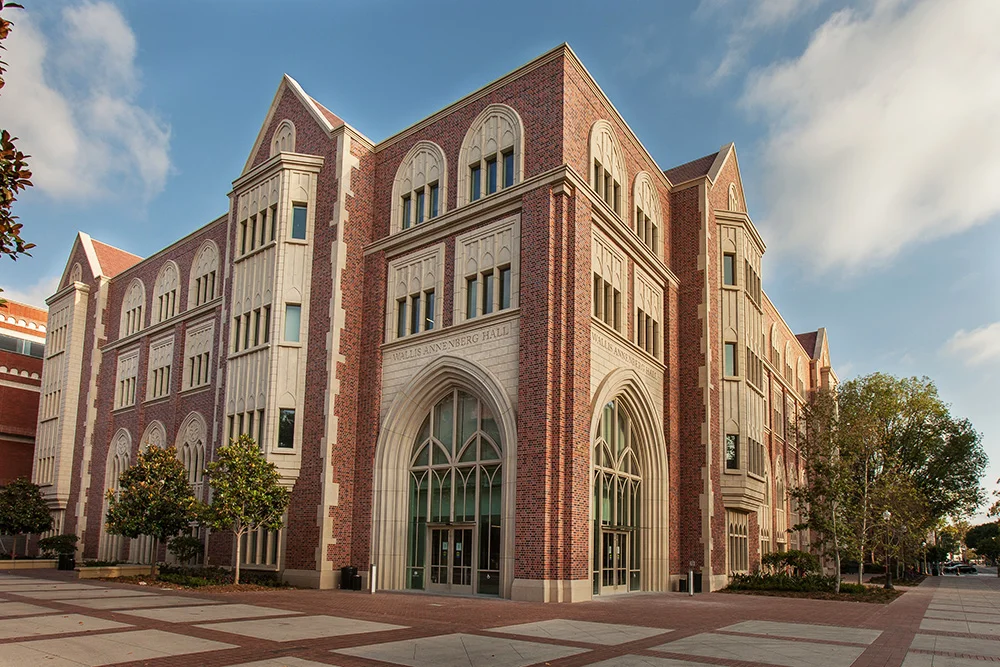

ANNENBERG ACADEMIC BUILDING, LOS ANGELES
Community Memorial Hospital, Ventura
Led by HBE Corp., we are proud to have been awarded the plumbing contract for the new 355,000 sqr ft. 242-bed community-based teaching hospital-Community Memorial Hospital with a total project value of $300 million. Established in 2005 when Community Memorial Hospital in Ventura merged with Ojai Valley Community Hospital, is comprised of these two hospitals along with family-practice health centers serving various communities within Ventura County. The project also included a full Medical Gas Plant, Kitchen, surgical rooms, dialysis treatment. Sierra also installed all mechanical for HVAC.
